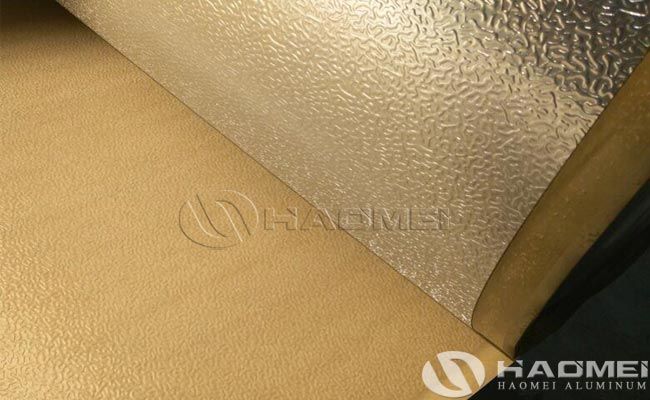

Aluminum Jacket With Moisture Barrier Kraft Paper

2024-09-30

Aluminum jacket with moisture barrier kraft paper is a kind of aluminum coil specially designed for thermal insulation applications with excellent thermal insulation and moisture-proof properties. It is widely used in many fields due to its excellent thermal insulation, moisture and corrosion resistance, oxidation and corrosion resistance, as well as chemical resistance. The product is widely used in industry, construction, home appliances, transportation, air-conditioning equipment and other fields, which can effectively reduce heat loss and improve energy efficiency.

Aluminum jacket with moisture barrier kraft paper are usually made from 1000, 3000 or 5000 series aluminum alloys, the specific alloys include:
-1060 Aluminum Alloy: This alloy has a high aluminum content, is lightweight and inexpensive, and is suitable for general insulation applications.
- 3003 Aluminum Alloy: This alloy has good formability, corrosion resistance and weldability and is suitable for a wide range of insulation applications.
- 5005 Aluminum Alloy: This alloy has high strength and excellent corrosion resistance and is suitable for use in wet or corrosive environments.

Aluminum jacket are usually available in heat-treated states (e.g. H14, H16, H24, H32, etc.). These states ensure that the coils maintain good strength and toughness during processing. Depending on the application, different states can be selected to meet different strength and processability requirements.

The thickness of Aluminum jacket with moisture barrier kraft paper usually ranges from 0.3mm to 1.5mm. According to the specific use occasions and thermal insulation requirements, users can choose the suitable thickness to achieve the best thermal insulation effect. The thickness of moisture barrier kraft paper is usually between 80g/m² and 150g/m², and the specific thickness can be customized according to customer requirements. The moisture-proof performance and tear resistance of kraft paper make it play an important protective role in the thermal insulation aluminum jacket, which can effectively prevent moisture penetration and prolong the service life of the aluminum jacketing. The width of aluminum coil with kraft paper usually ranges from 1000mm to 1500mm, and the exact width can be customized according to customers' needs. The choice of width will directly affect the subsequent processing and use efficiency.

Aluminum jacket with moisture barrier kraft paper have the following distinctive characteristics. Excellent thermal insulation: the aluminum jacket rolls are insulated by a moisture-proof kraft paper:
- Excellent thermal insulation performance: through the low thermal conductivity of the aluminum coil and the moisture-proof characteristics of the kraft paper, it can effectively reduce the conduction and loss of heat.
- Good corrosion resistance: the combination of corrosion resistance of aluminum alloy and moisture resistance of kraft paper makes the product still maintain stable performance in humid environment.
- Lightweight: Aluminum is lightweight and easy to handle and install, improving construction efficiency.
- Good processability: Aluminum coils are easy to cut, form and weld, suitable for a variety of processing methods, able to meet different design requirements.
- Environmentally friendly: both aluminum and kraft paper are recyclable, in line with modern environmental requirements.

In the industrial field, Aluminum jacket with moisture barrier kraft paper is widely used in cold storage, refrigerated trucks, pipe insulation, storage tank insulation and so on. It can effectively isolate the influence of high and low temperatures and protect the normal operation of pipelines, storage tanks and other equipment. At the same time, its moisture-proof and anti-corrosion, anti-oxidation and corrosion-resistant properties can effectively extend the service life and safety of these equipments.

With its excellent thermal insulation performance, corrosion resistance and good processability, aluminum jacket with moisture barrier kraft paper has become an indispensable material in several industries. By choosing the right alloy, condition, thickness and surface treatment, it can meet different application requirements, optimize product performance and enhance user experience. With the increasing awareness of energy saving and environmental protection, the market demand for such products will continue to grow.
