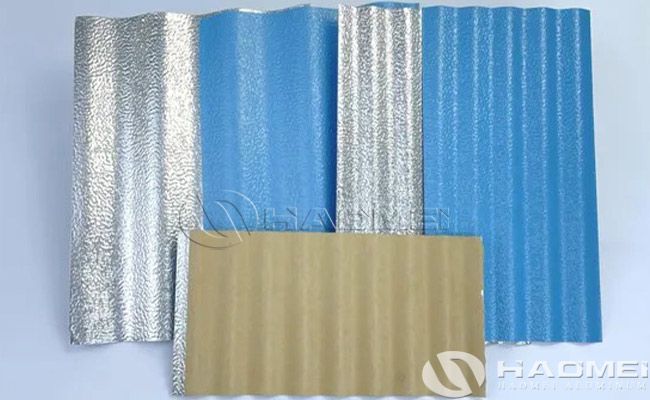

Corrugated Aluminum Jacketing Roll

2025-04-24

Corrugated aluminum jacketing roll refers to aluminum coil material with a corrugated shape, which is usually used for thermal insulation in areas such as building insulation, refrigeration equipment and industrial plants. The corrugated design increases the surface area of the aluminum jacketing, thereby improving its thermal insulation performance, and also provides additional structural strength in some applications.

The common used aluminum grades of corrugated aluminum jacketing roll are 1060 and 3003.

- 1060 aluminum alloy: This is an aluminum alloy in the pure aluminum series with good corrosion resistance, electrical conductivity and thermal conductivity, as well as high reflectivity. It is usually used in occasions that require good formability and corrosion resistance, such as building decoration materials, lighting parts, etc. However, due to its relatively low hardness and strength, it is not very suitable for applications that require high strength.

- 3003 aluminum alloy: This is a manganese alloy aluminum that provides better strength and work hardening capabilities than 1060 aluminum alloy. 3003 aluminum alloy not only retains good corrosion resistance, but also has higher mechanical properties, making it suitable for a wider range of applications, including kitchen appliances, radiators, chemical equipment and building insulation materials.

Structural features of aluminum corrugated jacketing roll

- Corrugated wave design: The aluminum jacketing sheet is rolled and cold-bent to form a wavy core plate, and an air channel is formed between the panel and the back plate to form a hollow structure.

- Material combination: It is often used in combination with thermal insulation materials such as rock wool and glass wool to form a sandwich structure of "aluminum coil + thermal insulation layer".

Corrugated aluminum roll jacketing can be composited with kraft paper and Surlyn (an ion polymer membrane) to enhance their thermal insulation, waterproof performance and mechanical strength. This composite material combines the advantages of each layer and is suitable for a variety of occasions that require efficient insulation, moisture-proof and protection, such as building exterior wall insulation systems, refrigerated transportation equipment interiors, etc.

Performance advantages of corrugated aluminum jacketing roll:

- Insulation and heat insulation

The air channel blocks heat conduction, reduces indoor temperature in summer, reduces heat loss in winter, and has significant energy-saving effects.

The thermal insulation performance is better than that of traditional iron sheets, and the thermal resistance value is increased by more than 30%.

- Lightweight and high-strength

The density is only 1/3 of that of steel, which is convenient to transport and install, and reduces construction intensity.

The tensile strength reaches 150-200MPa, which meets the safety requirements of building structures.

- Corrosion resistance

The surface oxide film thickness is ≥10μm, resistant to acid, alkali and salt spray corrosion, and has a service life of more than 20 years.

3003 anti-rust aluminum coil is suitable for high humidity environments, and 1060 pure aluminum coil is suitable for general corrosion scenarios.

- Beautiful and durable

The surface is smooth and can be roller-coated with fluorocarbon paint and polyester paint to enhance the decorative effect.

Anti-ultraviolet aging, long-term use does not fade.

- Environmentally friendly and recyclable

The recycling rate is ≥95%, the smelting and regeneration cost is low, and it meets the green building standards.

Application field of corrugated aluminum jacketing roll

- Construction industry: roof corrugated board, wall insulation layer, curtain wall decoration.

- Industrial field: pipeline insulation outer protection (such as power plants, chemical plants), equipment anti-corrosion cover.

- Transportation: vehicle sheet metal, refrigeration equipment shell.
