Transformer Aluminum Foil

sales@aluminumhm.com Get samples and prices !

Cut to size at customers' need !

Add to Product Favorites
Share
Haomei equipped with advanced equipment and technology, is one of the leading aluminium foil for transformer windings manufacturers and suppliers in China.
In dry type transformers, aluminum winding have been commonly used. Aluminum strip can replace copper conductor in distribution transformers. Aluminum foil and sheet in appropriate strip widths and lengths have widely replaced wire in electrical transformers. Demand for aluminum strip/foil using for oil transformer is new and will be more.

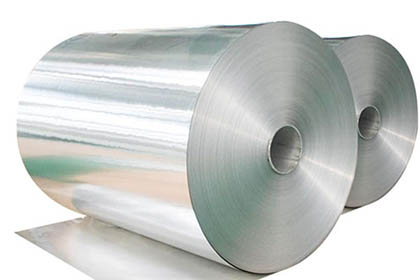

Haomei produce high conductivity roll type electrolytic aluminum foil used to manufacture the winding of electrical transformer, distribution transformer and cast resin transformer.
1. The foil conductor is of high conductivity annealed quality.
2. Slitting is closely controlled to assure strip free of cracks, roughness, scaling, stretch marks.

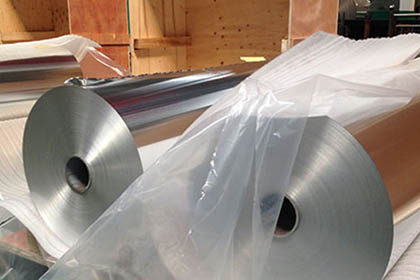

3. Paper is interleaved between layers of each aluminum foil roll according to requirement of clients.

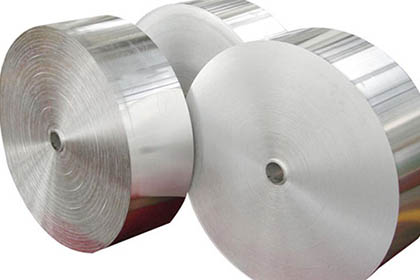

4. Each roll is tightly wound.
5. Coil is packed with eye to wall or eye to sky accordingly by sea worthy wooden pallet or box.
6. Foil is free of dents, surface defects, waviness, scale, or any other imperfections which would cause problems in either the winding, performance, or reliability of a quality manufactured dry or wet transformer.
7. The surface and edges of the foil is free of burrs and imperfections. The edges conform to a Round Edge.

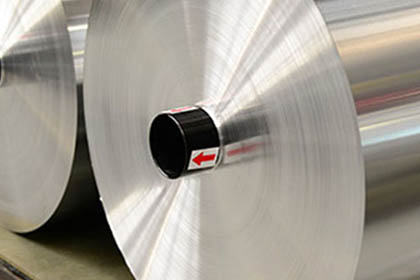

8. The tranformer aluminum foil is shipped in tightly wound rolls with proper edge register.

Specification of Aluminum Foils For Transformer
Grade & Temper  1050/1060/1070/1350-HO(O)
Thickness  0.2-3.0 mm
Width 20-1350 mm
Inner Diameter  150/300/400/500 mm

Conductivity Number(% IACS)  ≥61
Resistivity number (Ω·mm² /m) ≤0.027548
Elongation (%) 20
Tensile strength(Mpa) >60
Density in 20°C 2.7kg/cm3
Note: Satisfy Certificate RoHS, SGS, REACH, YS/T 713-2009



Chemical composition of aluminium foil for transformer winding
Grade Al(%)
MIN
Si(%)
Max
Fe(%)
Max
Cu(%)
Max
MN(%)
Max
Zn(%)
Max
Mg(%)
Max
Ti(%)
Max
Other
elements(%)
1050 99.5 0.25 0.4 0.05 0.05 0.05 0.05 0.03 0.03
1060 99.6 0.25 0.35 0.05 0.03 0.05 0.03 0.03 0.03
1070 99.7 0.25 0.04 0.03 0.04 0.04 0.03   0.03
1350 99.5 0.1 0.05 0.01 0.01 --- ---   0.03




Strength of Haomei Al.
  • Technologies:Top polishing technology guarantees good luster and smooth surface.
  • Markets:Obtain market sharing all over the world.
  • Equipment:Advanced cutting line to provide a wide range of specifications.
  • Production capacity:200, 000 tons annually in total.
  • Employees:Over 25 sale persons to provide good service for customers.
  • Responsibility: Engaged in charity donation and provide eco-friendly products.
Packaging and Delivery of Haomei Al.

Aluminum products of Haomei Al. meet the export standard. Plastic film and brown paper can be covered at customers’ need. What’s more, wooden case or wooden pallet is adopted to protect products from damage during the delivery. There are two kinds of packaging, which is eye to wall or eye to sky. Customers can choose either of them for their convenience. Generally speaking, there are 2 tons in one package, and loading 18-22 tons in 1×20′ container, and 20-24 tons in 1×40′ container.
