3004 Aluminum Strip

Properties Strength Packaging and Delivery

3004 aluminum is an Al-Mn alloy, its outstanding features are good corrosion resistance, high formability, good weldability, moderate strength and cannot be strengthened by heat treatment. It is stronger than 3003 aluminum and is often used for extrusion and stretching. It is widely used in manufacturing food cans, packaging cans, cosmetic cans, etc.

Products	3004 aluminium strip
Alloy temper	F,O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H111,H112,H114
Available dimension	Thickness: 0.5-6.0 mm; Width: 100-1000 mm; Length: strip Can be cut to customized sizes.
MOQ	300 kgs/size
Lead time	7-25 days
Tolerances	As customer’s requirement
Loading Port	Qingdao Port,Tianjin Port,Shanghai port.
Price terms	FOB, CIF, CFR, CNF, etc.
Payment terms	TT, L/C,D/A,D/P,T/T , West Union, Money Gram, Etc.

Chemical Composition:

The manganese content of 3004 aluminum is higher than that of 3003, which gives 3004 better corrosion resistance. On the contrary, 3003 aluminum strip shows strong ductility and is suitable for deep drawing. 3004 is more suitable for wet or corrosive application environments and is suitable for contact with liquids.

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Others: Each	Others: Total
3004	0.30	0.70	0.25	1.0-1.5	0.8-1.3	–	0.25	–	0.05	0.15

Technical Parameters of 3004 Alloy Aluminum:

Processing And Forming	3004 aluminum strip can be processed through milling, drilling, cutting, cold bending, rolling, hot rolling, cold rolling and other processes.
Surface Treatment	Mill finish、coated、powder coated、anodized、polished mirror、embossed、etc.
Welding	Conventional argon arc welding, resistance spot welding, laser welding and other welding processes.
Heat Treatment	Solution treatment and aging treatment.
Forging	Hot forging, cold forging, etc.

Mechanical Properties

Tensile Strength	Yield Strength	Elongation
120MPa-150MPa	40MPa-60MPa	25%-30%

Physical Properties

Grade	3004
Density	2.72 g/cm³
Melting Point	660.3 °C
Elastic Modulus	70GPa-80GPa
Conductivity	39.4 MS/m
Thermal Expansion	23.6 μm/m°C
Specific Heat Capacity	0.896 J/g°C

Advantages of 3004 Aluminium Strip:

- Corrosion resistance: 3004 aluminum can resist corrosion of liquid food and beverages, keeping them fresh and pure without affecting the quality of the product.

- Processability: 3004 alloy aluminum is easy to process and form, and is suitable for various forming processes such as deep drawing, bending, cutting, and cold rolling.

- Aesthetics: Aluminum 3004 has good surface treatment effects and can be applied to different aesthetic requirements through painting, sandblasting, anodizing and other processes.

- High temperature stability: 3004 is suitable for applications that operate in high temperature environments, such as kitchen appliances and cooking equipment.

Application of 3004 Aluminum Strip:

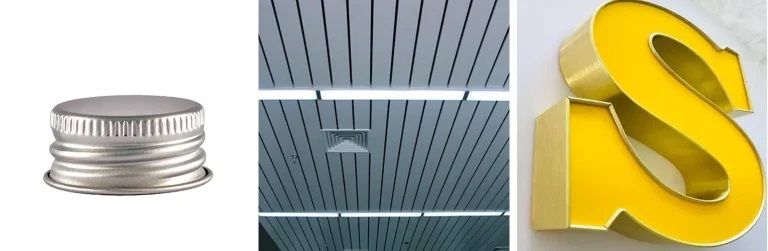

Aluminium strip 3004 is widely used in various applications, including lamp holders, louver materials, heat sinks, LCD back panels, aluminum substrates for color coating, roofing materials, building curtain walls, storage devices for chemical products, casings for photovoltaic inverters, cake trays, pizza shovels, and aluminum honeycomb panels.

Strength of Haomei Al.

Technologies:Top polishing technology guarantees good luster and smooth surface.
Markets:Obtain market sharing all over the world.
Equipment:Advanced cutting line to provide a wide range of specifications.
Production capacity:200, 000 tons annually in total.
Employees:Over 25 sale persons to provide good service for customers.
Responsibility: Engaged in charity donation and provide eco-friendly products.

Packaging and Delivery of Haomei Al.

Aluminum products of Haomei Al. meet the export standard. Plastic film and brown paper can be covered at customers’ need. What’s more, wooden case or wooden pallet is adopted to protect products from damage during the delivery. There are two kinds of packaging, which is eye to wall or eye to sky. Customers can choose either of them for their convenience. Generally speaking, there are 2 tons in one package, and loading 18-22 tons in 1×20′ container, and 20-24 tons in 1×40′ container.
