Properties of 1060 Aluminum Sheet

1060 aluminum sheet is pretty similar to 1050 aluminum alloy with more than 0.1% of aluminum by weight. Both 1050 and 1060 aluminum sheet of Haomei Aluminum lives up to ISO standards, but they cover different ASTM standards. 1060 aluminum sheet contains 0.05% cooper, thus, its conductivity is 55%. Besides, 1060 aluminum sheet is relatively low strength, essentially pure aluminum alloy with many different tempers, such as O (annealed), H12, H14, H16, H18, etc. what’s more, other aluminum sheet belonging to commercial pure wrought family are available, including 1050, 1070, 1100 and so on.

Elements

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Others

Al



Content

(max)

0.25

0.35

0.05

0.03

0.03

-

0.05

0.03

0.15

Remain



Alloy
 Temper

Specified

Tensile
strength

Yield
strength

Elongation



Thickness(in.)

(ksi)

(ksi)

(%)



1060-O

(annealed)

0.006-0.019

8.0-14.0

2.5

Min15



0.020-0.050

Min22



0.051-3.000

Min25



1060-H12/

1060-H22

0.017-0.050

11.0-16.0

9.0

Min6



0.051-2.000

Min12



1060-H14/

1060-H24

0.006-0.019

12.0-17.0

10.0

Min1



0.020-0.050

Min5



0.051-1.000

Min10



1060-H16/

1060-H26

0.006-0.019

14.0-19.0

11.0

Min1



0.020-0.050

Min4



0.051-0.162

Min5



1060-H18/

1060-H28

0.006-0.019

Min16.0

Min12.0

Min1



0.020-0.050

Min3



0.051-0.128

Min4





1060-H112

0.250-0.499

Min11.0

Min7.0

Min10



0.500-1.000

Min10.0

Min5.0

Min20



1.001-3.000

Min9.0

Min4.0

Min25



Features and Applications of 1060 Aluminum Sheet

1060 aluminum sheet is noted for its excellent welding characteristics and formability by cold or hot working with commercial techniques. It cannot be hardened by heat treatment but only from cold working. Tempers H12, H14, H16 and H18 are determined by the amount of cold working imparted into the alloy. Moreover, 1060 aluminum sheet has good corrosion resistance as well as poor machine-ability, and its machine-ability can be improved in harder (cold working) tempers, such as H16 and H18. For its features above, 1060 aluminum sheet has a vast application, such as electric and chemical equipment, railroad tank cars, etc.


Strength of Haomei Al.
  • Technologies:Top polishing technology guarantees good luster and smooth surface.
  • Markets:Obtain market sharing all over the world.
  • Equipment:Advanced cutting line to provide a wide range of specifications.
  • Production capacity:200, 000 tons annually in total.
  • Employees:Over 25 sale persons to provide good service for customers.
  • Responsibility: Engaged in charity donation and provide eco-friendly products.
Packaging and Delivery of Haomei Al.

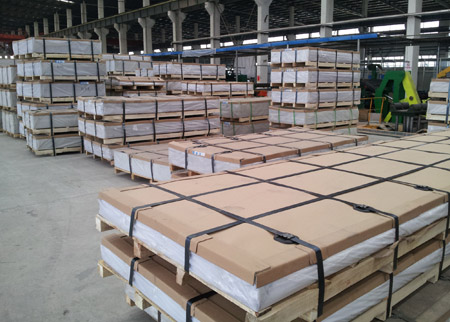

Aluminum products of Haomei Al. meet the export standard. Plastic film and brown paper can be covered at customers’ need. What’s more, wooden case or wooden pallet is adopted to protect products from damage during the delivery. There are two kinds of packaging, which is eye to wall or eye to sky. Customers can choose either of them for their convenience. Generally speaking, there are 2 tons in one package, and loading 18-22 tons in 1×20′ container, and 20-24 tons in 1×40′ container.
