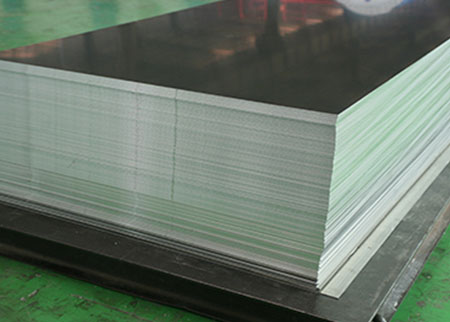

3105 Aluminum Sheet

sales@aluminumhm.com Get samples and prices !

Cut to size at customers' need !

Add to Product Favorites
Share

Properties of 3105 Aluminum Sheet

3105 aluminum sheet with 98% pure aluminum and slight alloy additions for strength. 0.3% of copper is added to 3105 aluminum sheet, so the conductivity turns out to be 41%. For its contents and processing technologies, 3105 aluminum sheet is light in weight and it has semi-smooth surface. Besides, it is not hardened by heat treatment. All the products Of Haomei Al. live up to international standards, such as ASTM, EN, JIS, etc. Therefore, quality of 3105 aluminum sheet can also be guaranteed. Haomei can supply particular specifications at customers’ need besides the following.

Elements

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Others

Al

Content

0.6

0.7

0.3

0.3-0.8

0.2-0.8

0.2

0.4

0.1

0.15

Remain

Alloy
 Temper

Specified

thickness

Tensile
strength

Yield
strength

Elongation

(inches)

(KSI)

(KSI)

(%)

3105-O

(annealed)

0.013-0.019

96-145

Min34

16

0.020—0.031

18

0.032-0.080

20

3105-H12

0.017-0.019

131-179

Min103

1

0.020-0.031

1

0.032-0.050

2

0.051-0.080

3

3105-H14

0.013-0.019

152-200

Min124

1

0.020-0.031

1

0.032-0.050

2

0.051-0.080

2

3105-H16

0.013-0.031

172-221

Min145

1

0.032-0.050

2

0.051-0.080

2

3105-H18

0.013-0.031

Min193

Min165

1

0.032-0.050

1

0.051-0.080

2

3105-H25

0.013-0.019

Min15

Min131

2

0.020-0.031

3

0.032-0.050

4

0.051-0.080

6

Features and Applications of 3105 Aluminum Sheet

Mg, Mn and Si are added to 3105 aluminum sheet, thus, it has excellent correction resistance, formability and welding characteristics. Besides, it has average mechinability and it can be increased in harder tempers than in annealed condition. Oil lubricants should be used for all machining operations. The forming characteristics of 3105 aluminum sheet are pretty good by all conventional processes regardless of temper. But 3105 aluminum sheet does not respond to heat treatment except for annealing during cold working. The cold working characteristics are very good, even in the harder cold working tempers. For all the features above, 3105 aluminum sheet has a vast application in many field.



Strength of Haomei Al.
  • Technologies:Top polishing technology guarantees good luster and smooth surface.
  • Markets:Obtain market sharing all over the world.

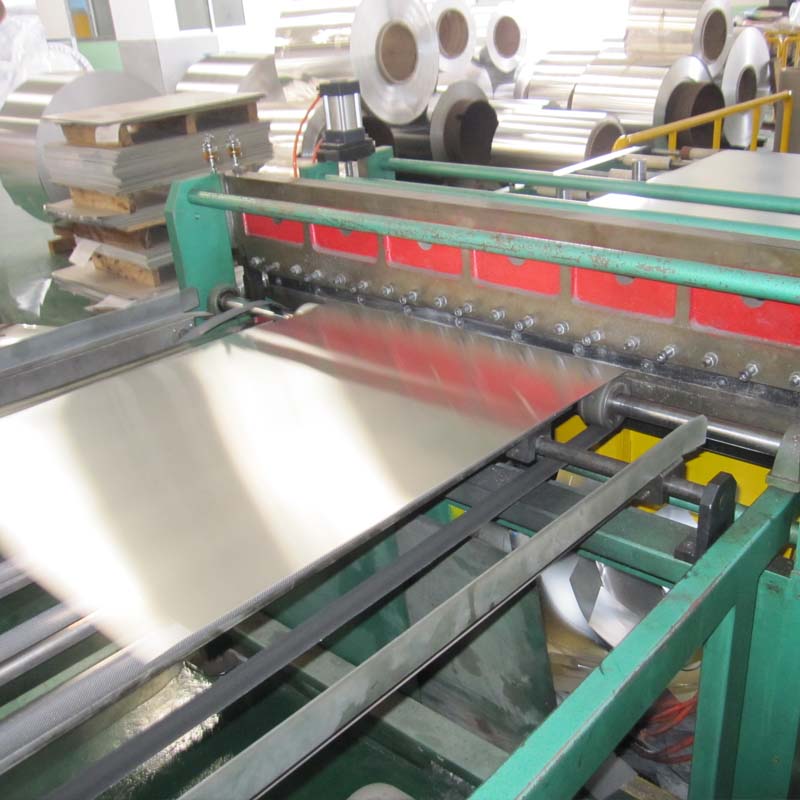

  • Equipment:Advanced cutting line to provide a wide range of specifications.
  • Production capacity:200, 000 tons annually in total.
  • Employees:Over 25 sale persons to provide good service for customers.
  • Responsibility: Engaged in charity donation and provide eco-friendly products.

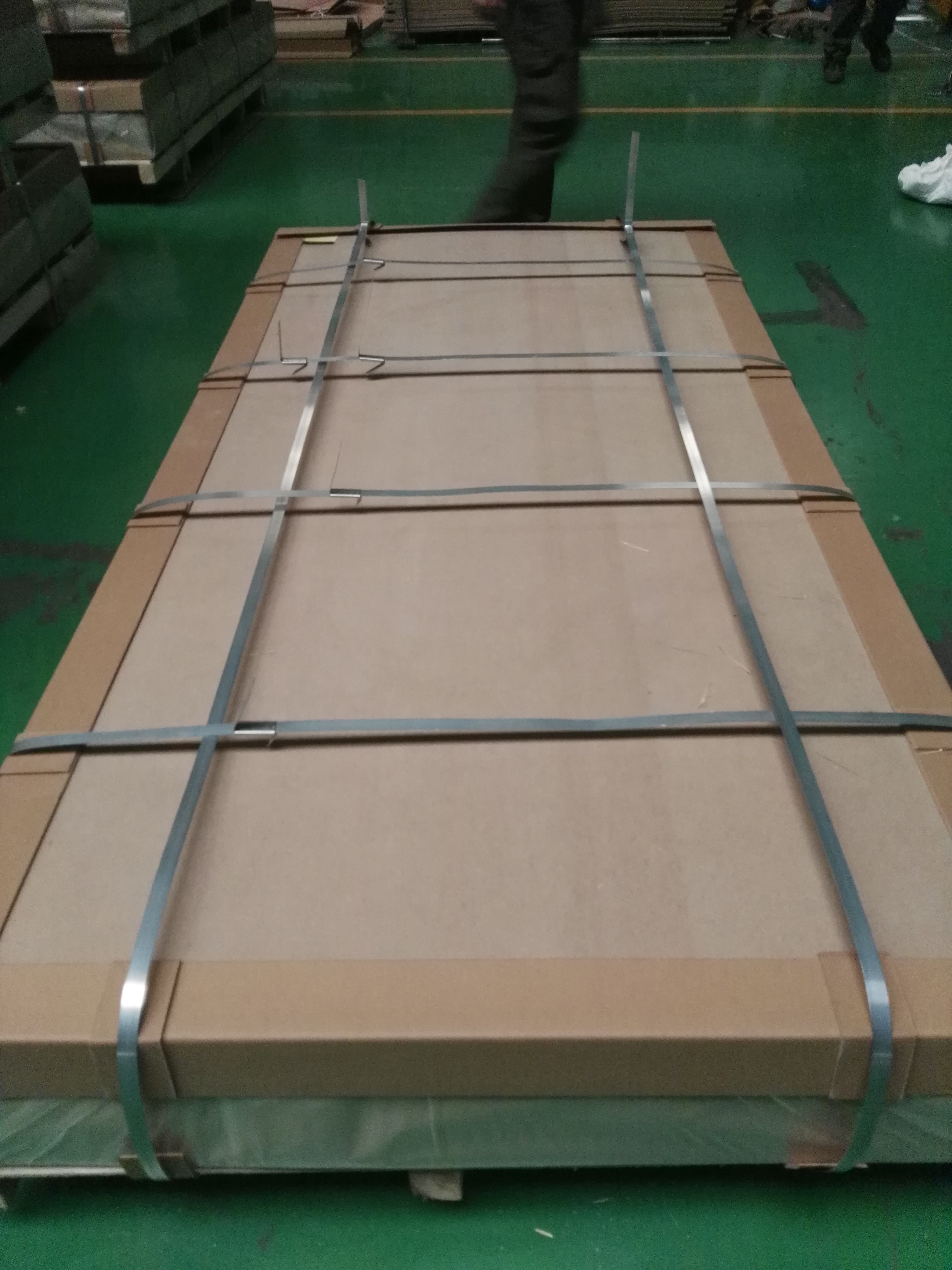

Packaging and Delivery of Haomei Al.

Aluminum products of Haomei Al. meet the export standard. Plastic film and brown paper can be covered at customers’ need. What’s more, wooden case or wooden pallet is adopted to protect products from damage during the delivery. There are two kinds of packaging, which is eye to wall or eye to sky. Customers can choose either of them for their convenience. Generally speaking, there are 2 tons in one package, and loading 18-22 tons in 1×20′ container, and 20-24 tons in 1×40′ container.
